Fire resistant boards

Geostaff fire resistant boards, mainly made of gypsum and fibreglass, are intended for passive fire protection and are tested according to EN 1366-1 and EN 1366-8.

Our fire-protective boards from the GEOTEC® and GEOFLAM® ranges allow you to create various passive fire protection solutions: horizontal and vertical ventilation and smoke extraction ducts; protections for service ducts; protection of bonded carbon reinforcements; protection of cable trays, for a fire exposure time of 1 to 3 hours.

GEOTEC® fire resistant boards can be joined using GEOCOL® glue and wood screws or by “polochons” or staples, whereas GEOFLAM® fire protective boards can only be joined using GEOCOL® glue and polochons*.

*Polochons: mixture of sisal fibre impregnated with plaster GEOPLASTRE®N

Products

Gypsum and fibreglass fire protective board for passive fire protection

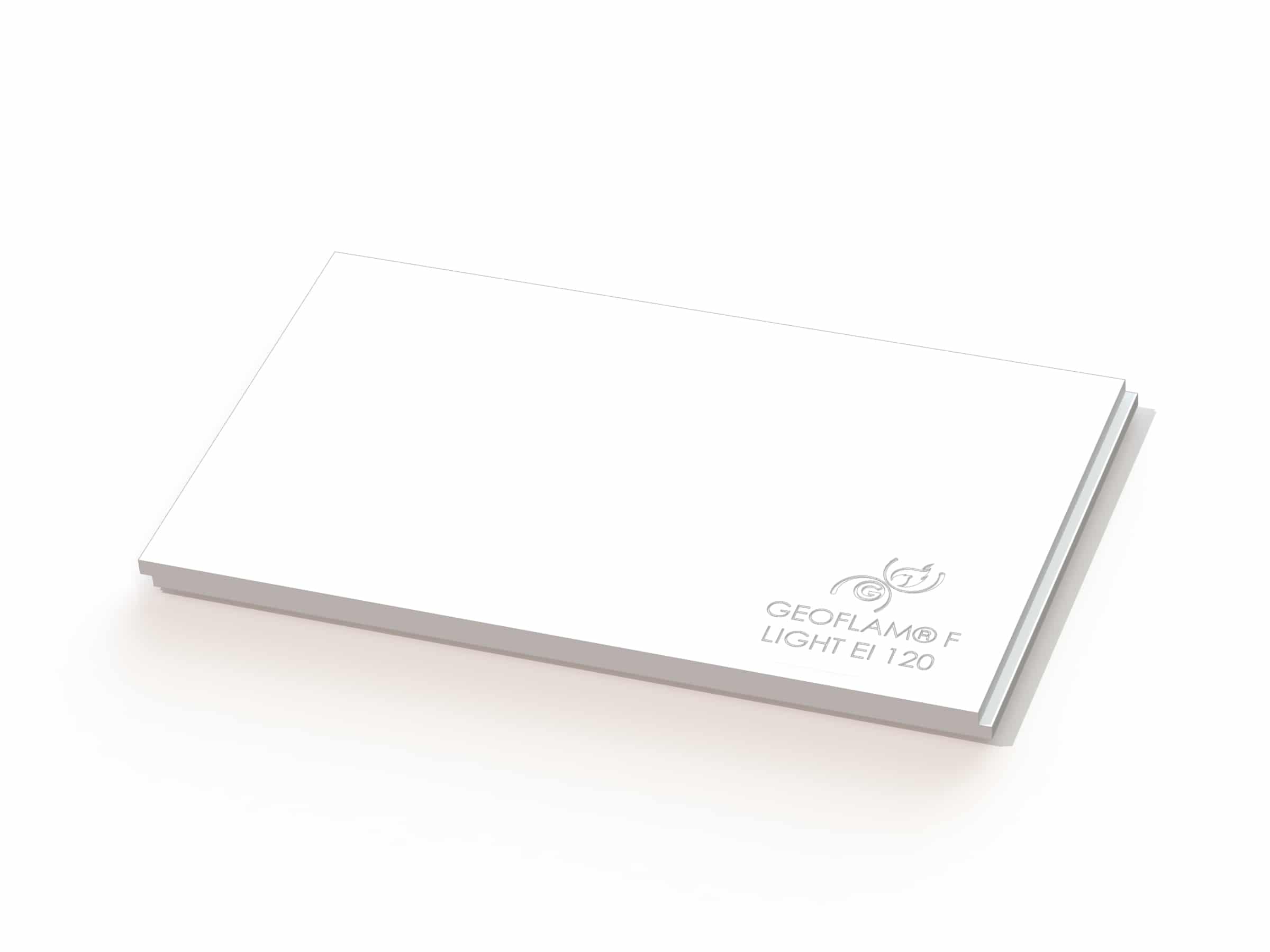

GEOFLAM® F LIGHT boards

2-hr. fire protective board 35 mm thick and with dimensions from 200 to 1100 (W) x 1000 (L) mm (in steps of 50 mm).

Technical notice
Gypsum and fibreglass fire protective board for passive fire protection

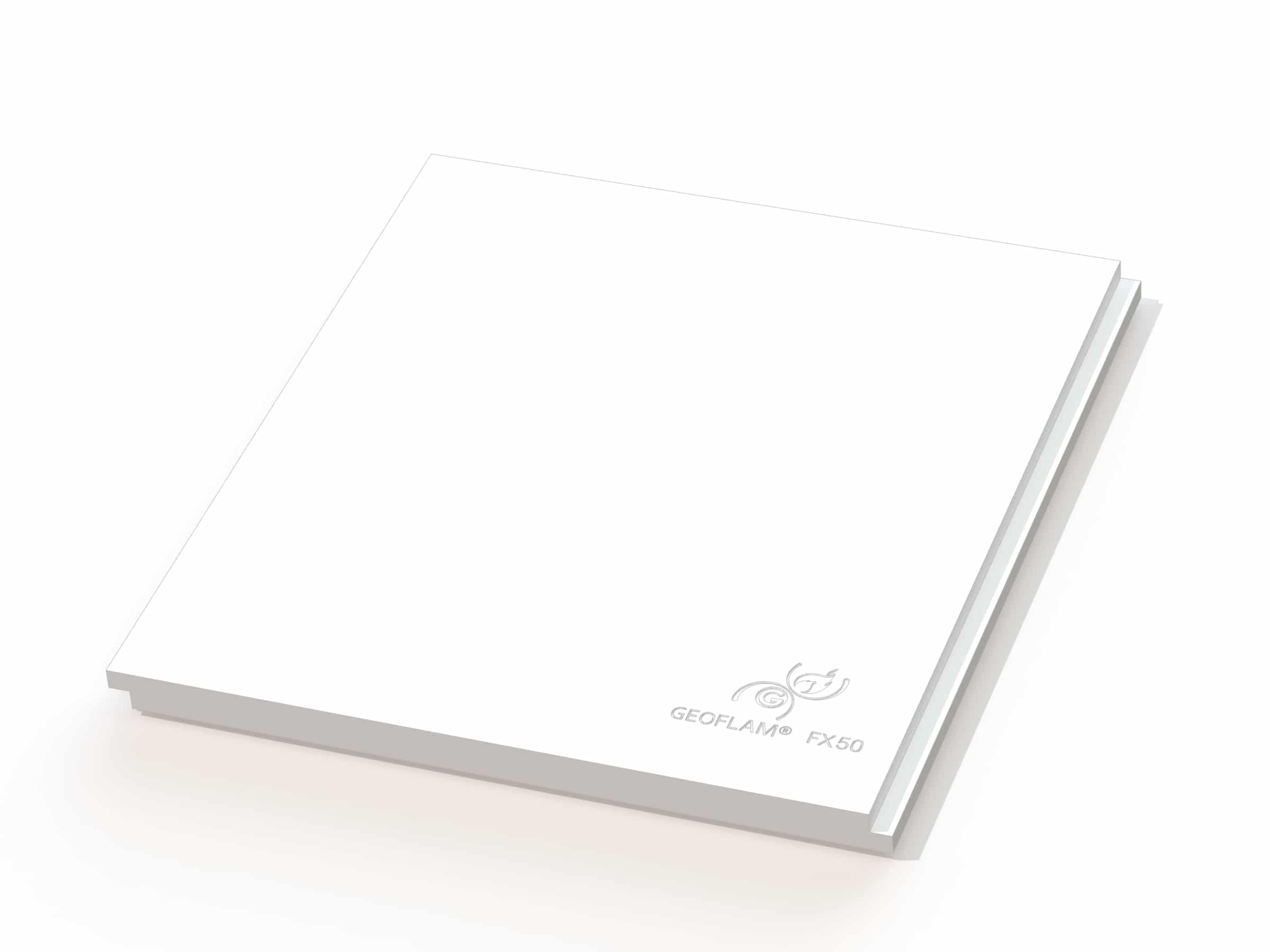

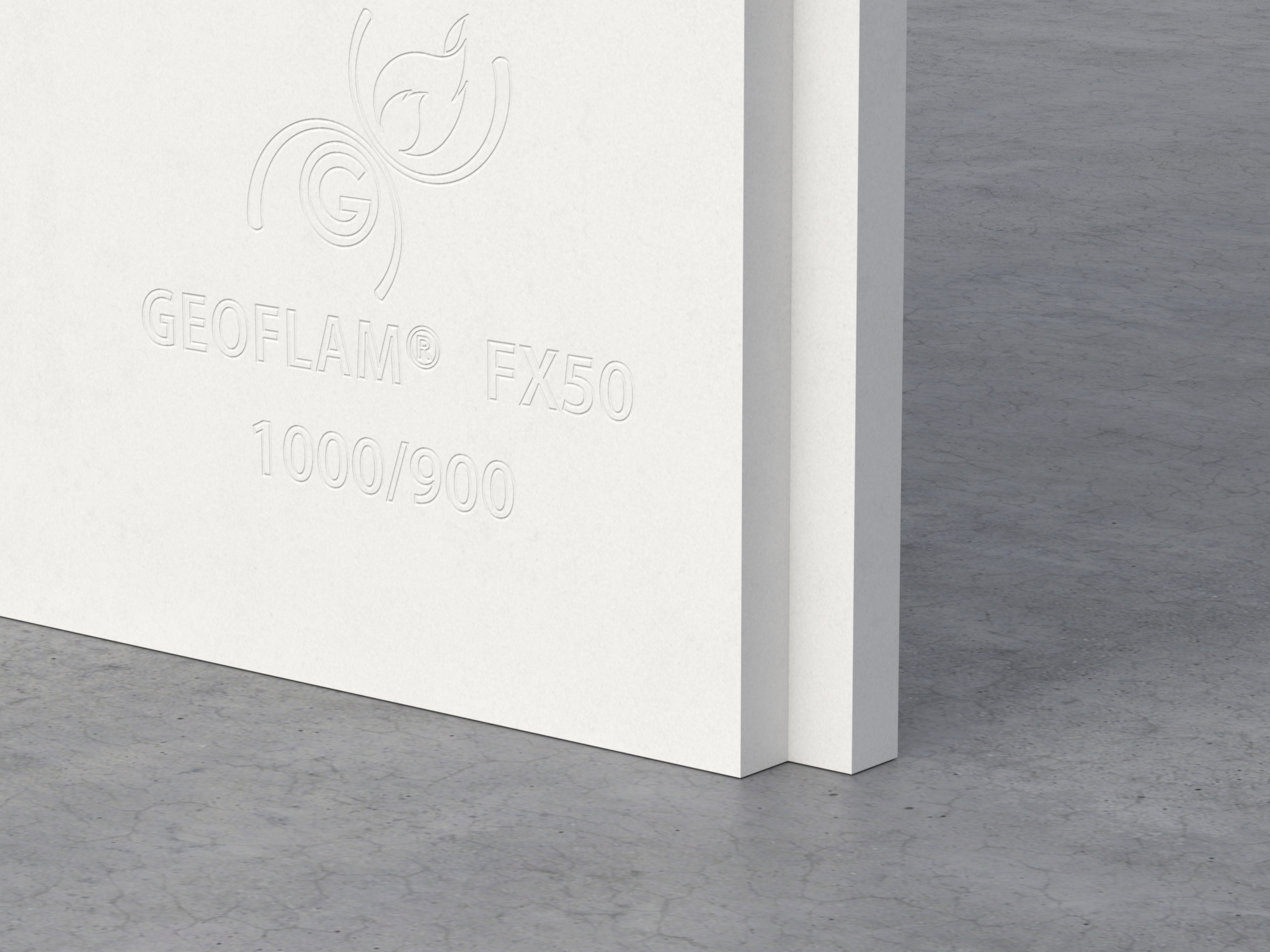

GEOFLAM® FX50 boards

3-hr. fire protective board 50 mm thick and single dimension 1000 (W) x 900 (L) mm for passive fire protection.

Technical notice
Gypsum and fibreglass fire protective board for passive fire protection

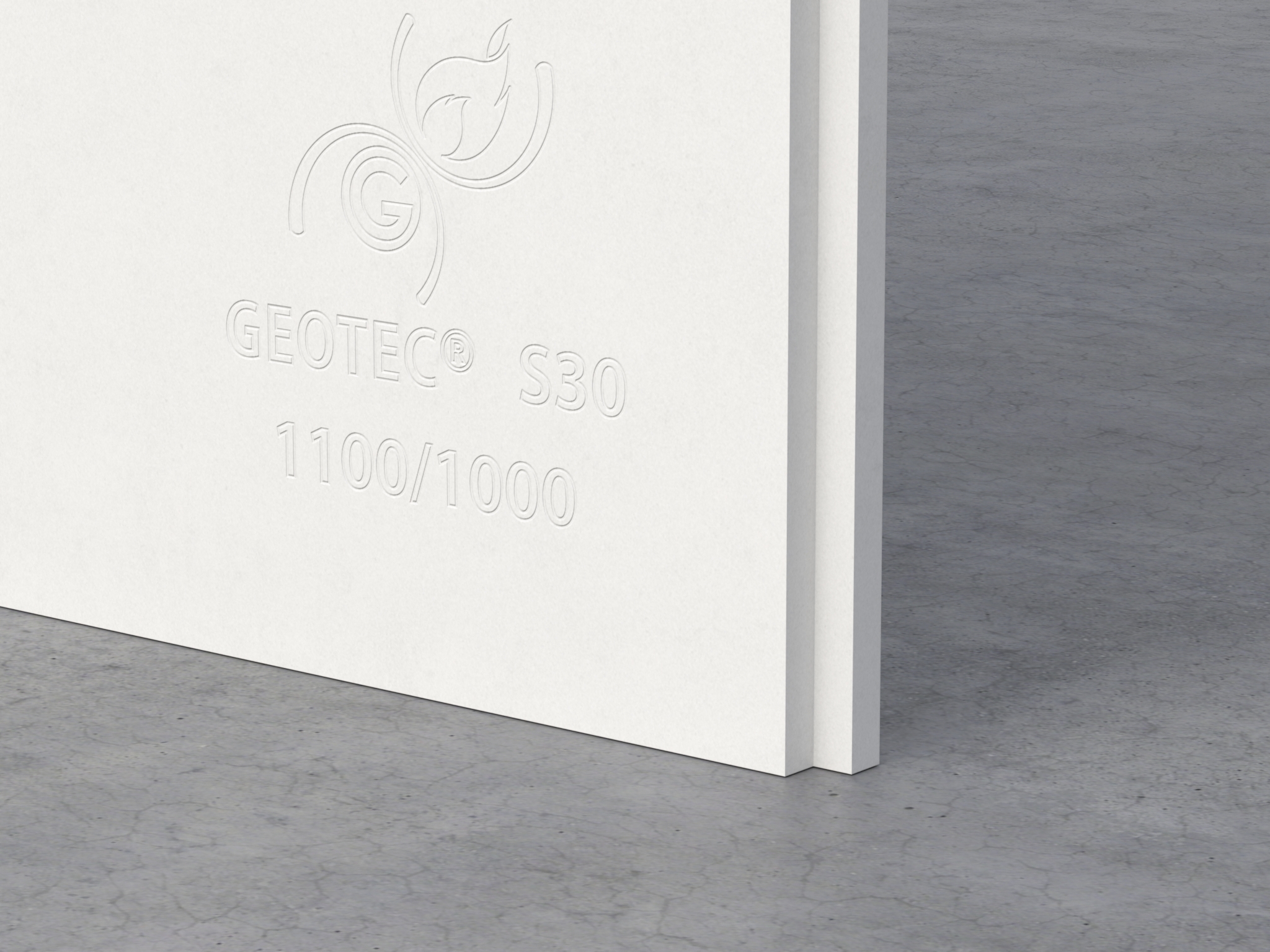

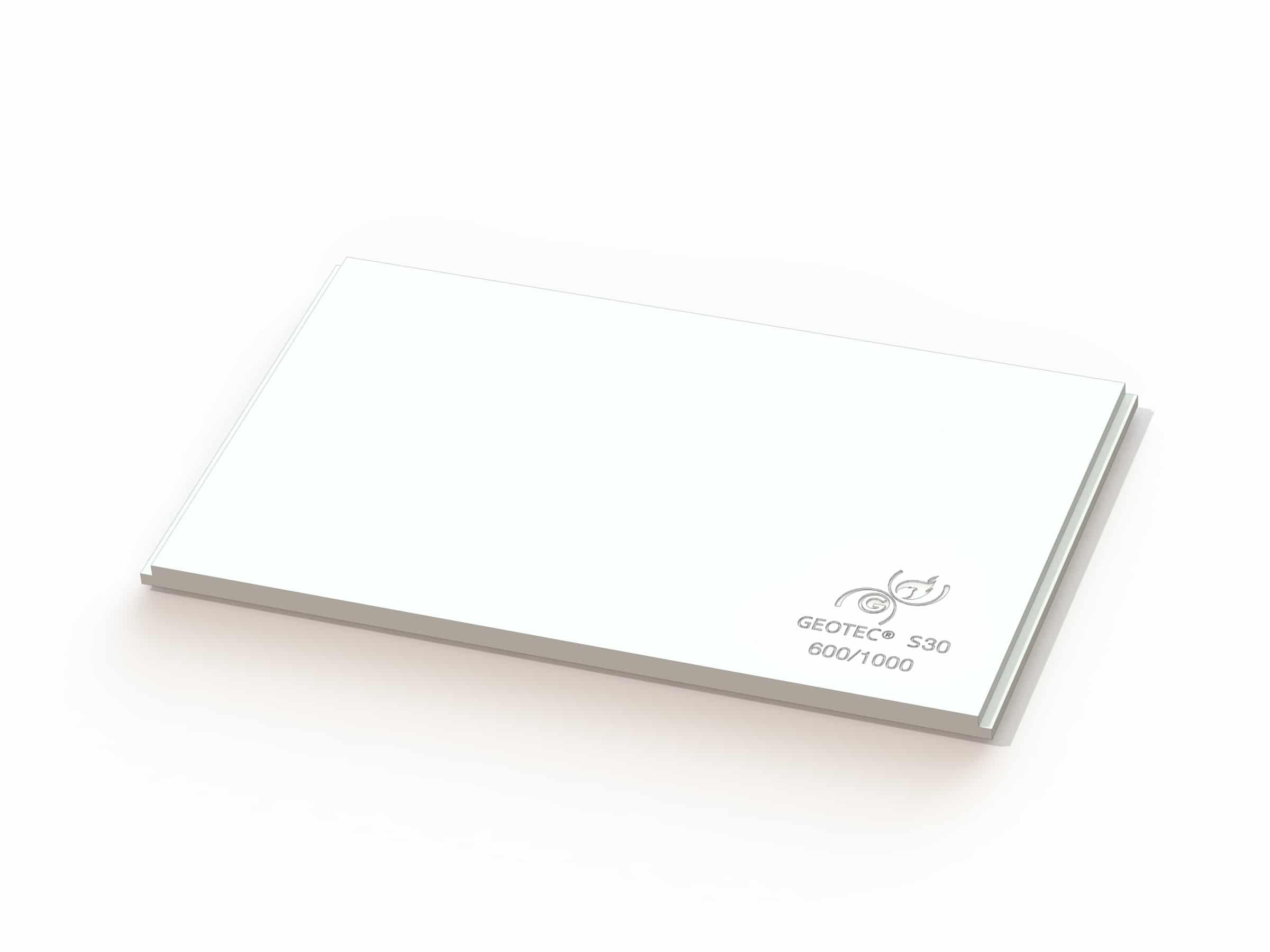

GEOTEC® S30 boards

1 hr. fire protective board 30 mm thick and with dimensions from 200 to 1100 (W) x 1000 (L) mm (in steps of 50 mm).

Technical notice
Gypsum and fibreglass fire protective board for passive fire protection

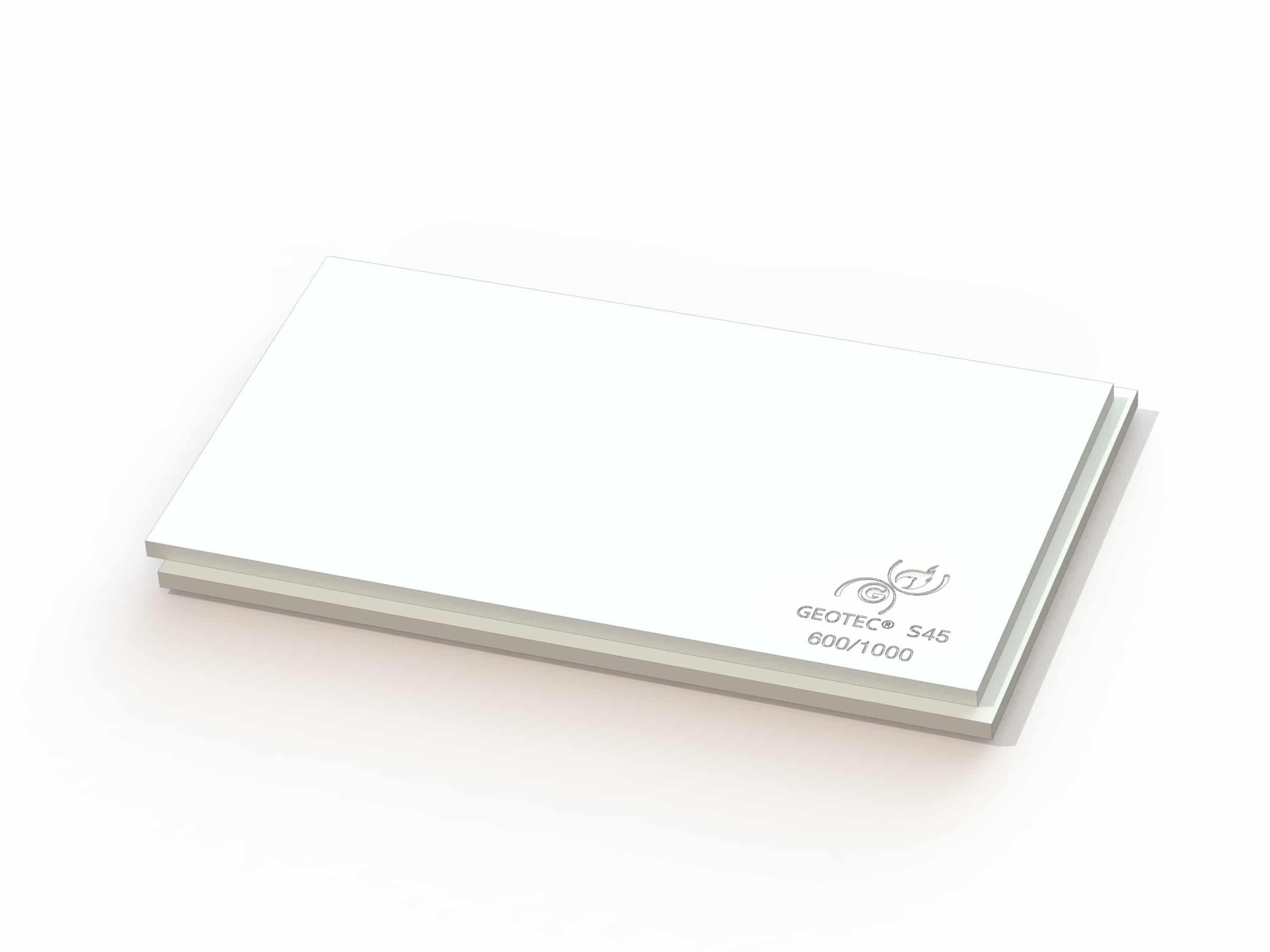

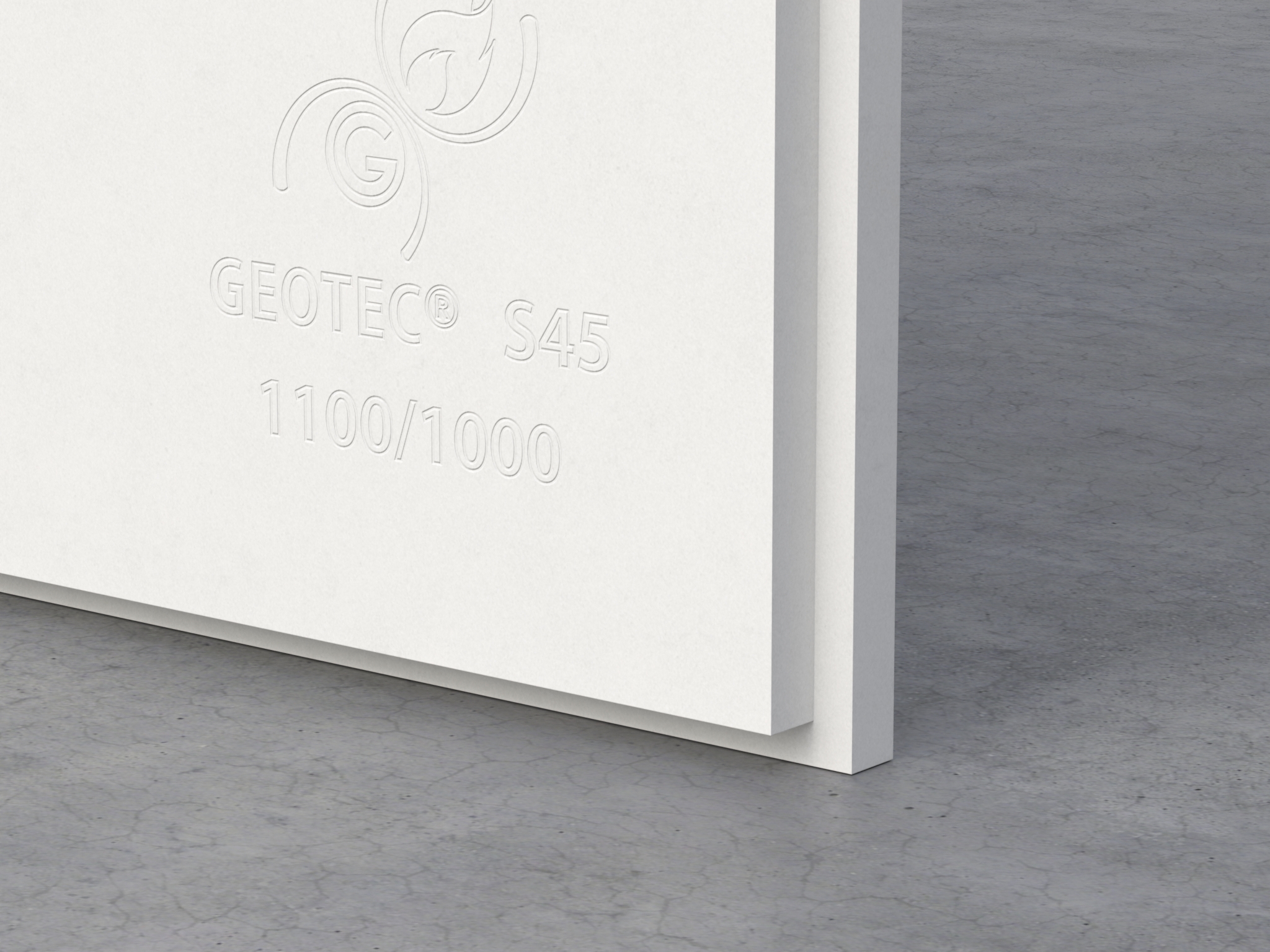

GEOTEC® S45 boards

2-hr. fire protective board 45 mm thick and with dimensions from 200 to 1100 (W) x 1000 (L) mm (in steps of 50 mm).

Technical notice
Gypsum and fibreglass fire protective board for passive fire protection

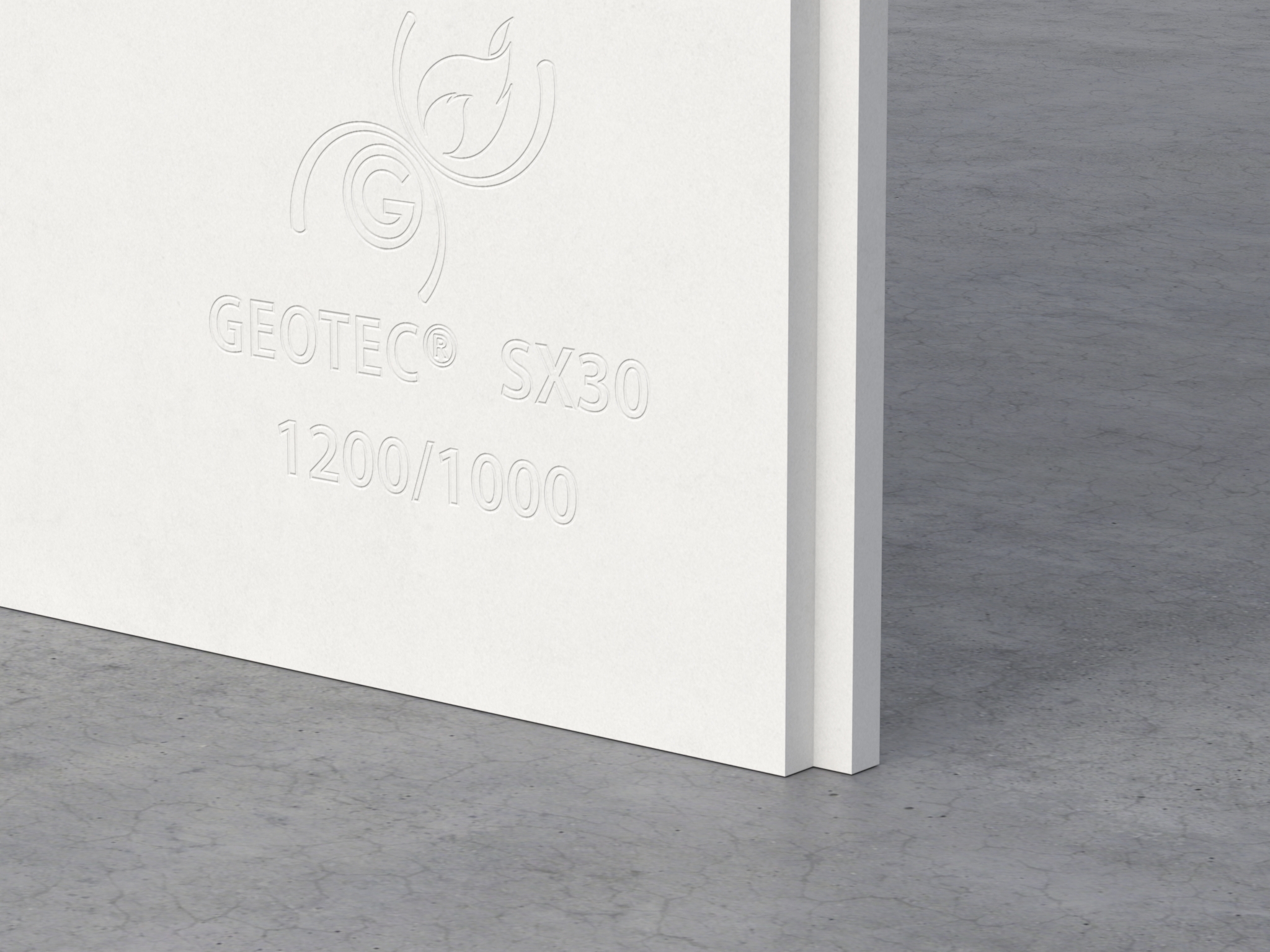

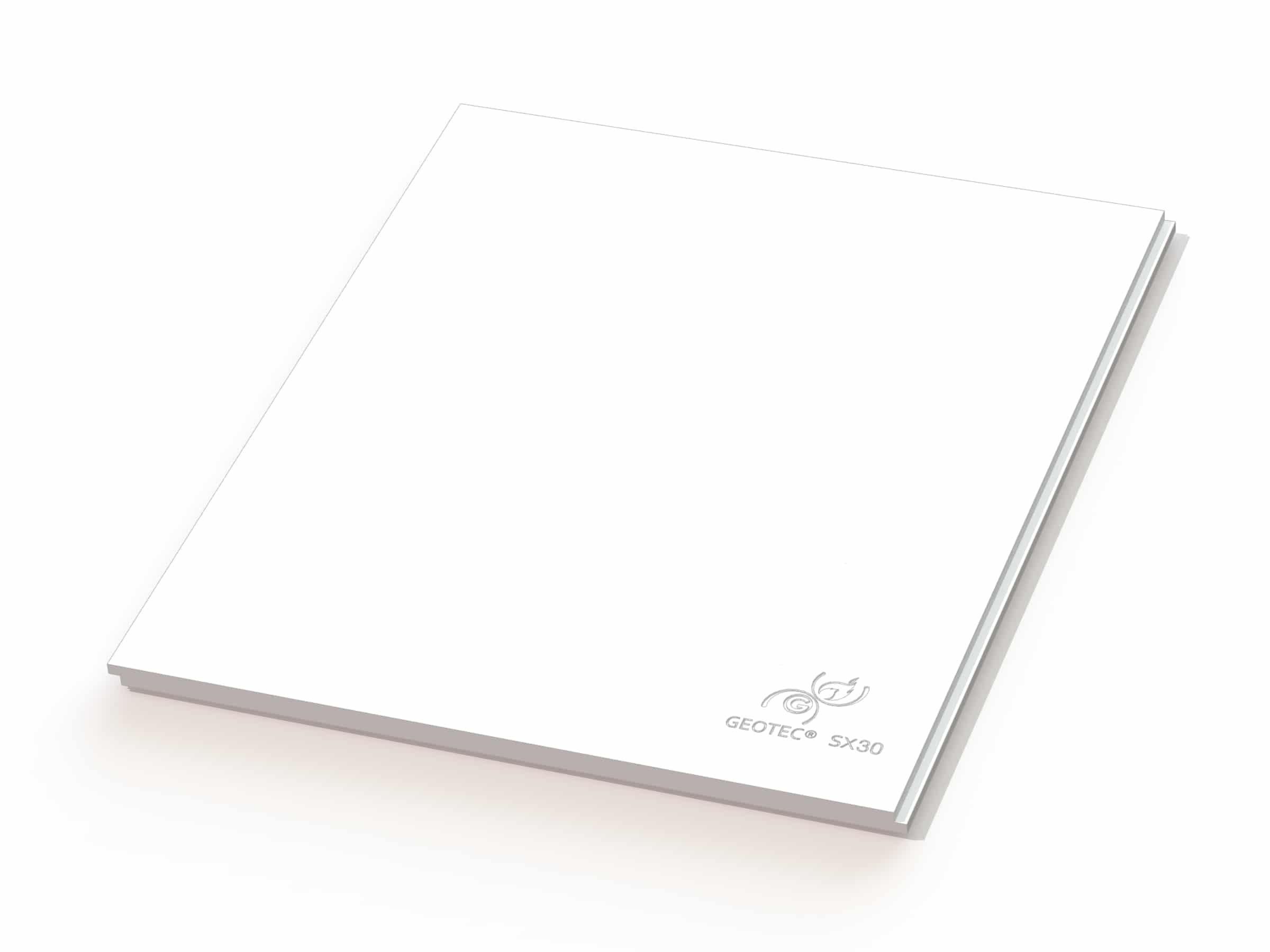

GEOTEC® SX30 boards

1 hr. fire protective board, thickness 30 mm and unique dimension 1200 (W) x 1000 (L) mm.

Technical notice
Gypsum and fibreglass fire protective board for passive fire protection

GEOTEC® SX45 boards

2-hr. fire protective board 45 mm thick and unique dimension 1200 (W) x 1000 (L) mm for passive fire protection

Technical notice
